Flexible Case Packer
A simple & Flexible vertical case packer
■Simple multipurpose design
■Both flexible and rigid package
■Vertical and horizontal pack patterns
■Self diagnosis and error recovery
■Versatile and cost effective
■Advanced motion control
The FCP utilizes a dual system of flights to control, orient, and unitize groups of products providing an efficient yet simple operation
One Case Packer designed for a multitude of product shapes, styles, patterns and production demands Line change from Cartons to stand-up pouches? – No Problem
Multiple product “row and layer” configurations and case pack patterns
Smooth – easy motions
Controlled “Layer Pack” loading assures “in the case every time!”case packing
Dual, independent collator design increases speed through multi-axis design
Compact machine footprint design for tight spaces and production changes
Integrate directly with Yamato CheckWeighers and/or addition equipment
Stainless Steel Construction
■Advanced Motion Equals Control
Small, powerful Servo Motors offer
Unparalleled precision control in multi-axis positioning
Speed to 150 per minute ; dual lane in-feed and to 120 per minute ; single lane in-feed
Expandable, modular type Motion controller
Synchronous control of motion & sequence
Continuous and repeatable drive positioning
Exceptional accuracy, response and control range
Dynamic Brake Torque control provides for safe operation
RS232C, Ethernet, DeviceNet & Modem communication capable
Motion & drive components are anufactured by the worlds leading manufacturer of servo motors and drives

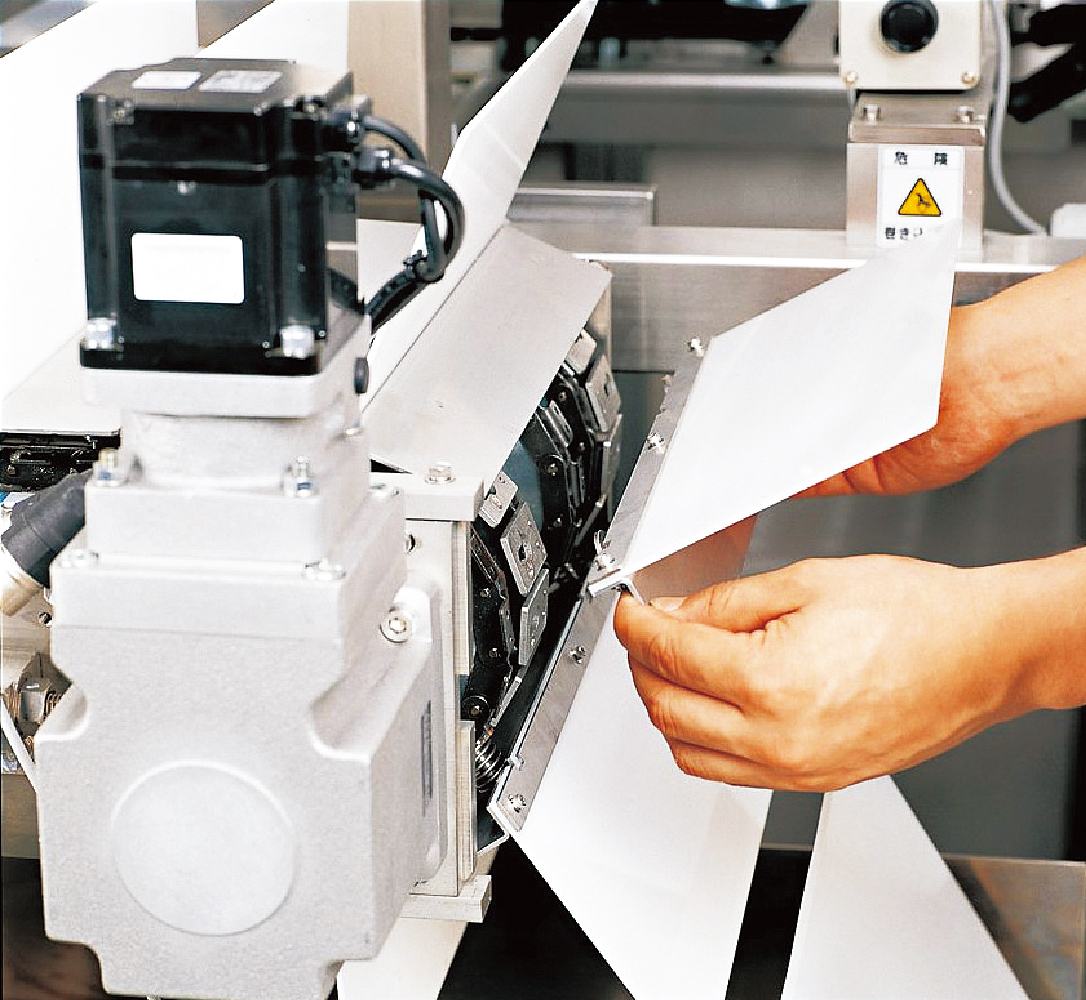

■Product Change Over
Unique, No-Tool’s Required’ design allows for easy pack pattern changes by operators Highly flexible system of FLIGHTS allow for a wide variety of product packing capabilities Change-over time usually in twenty minutes or less!

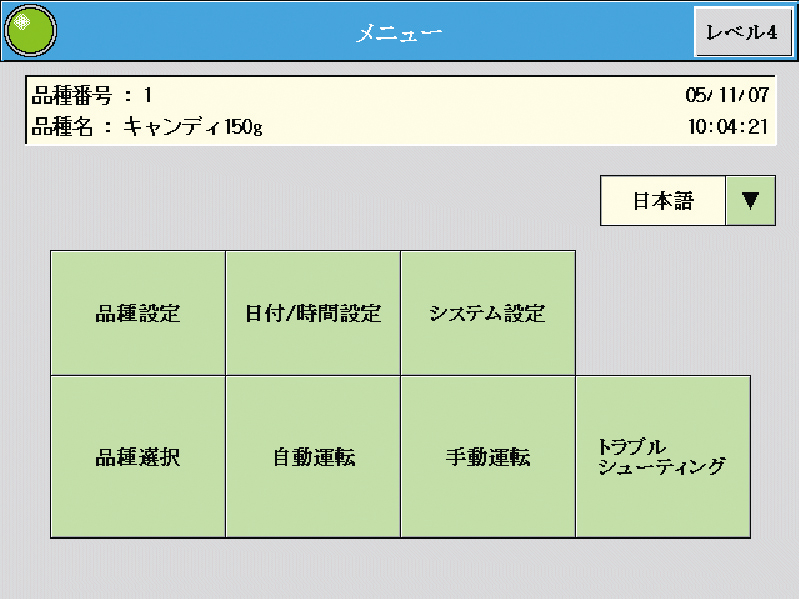

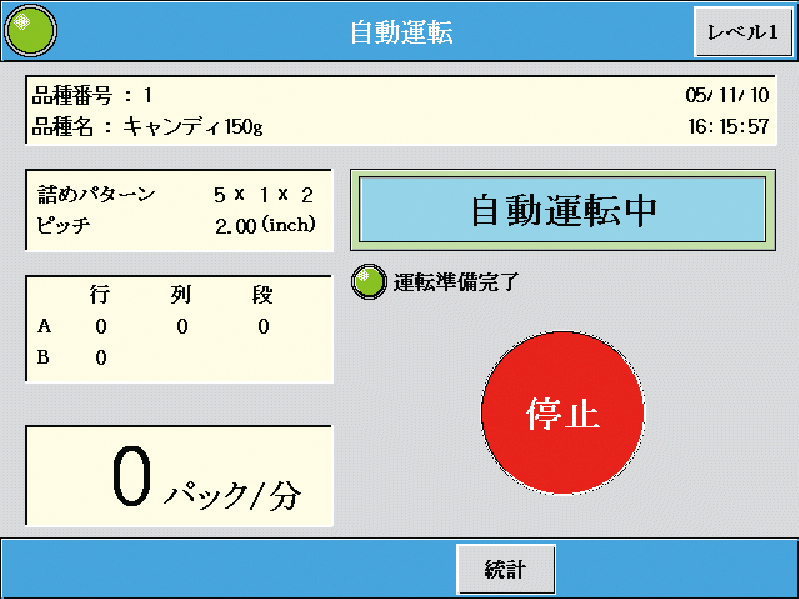

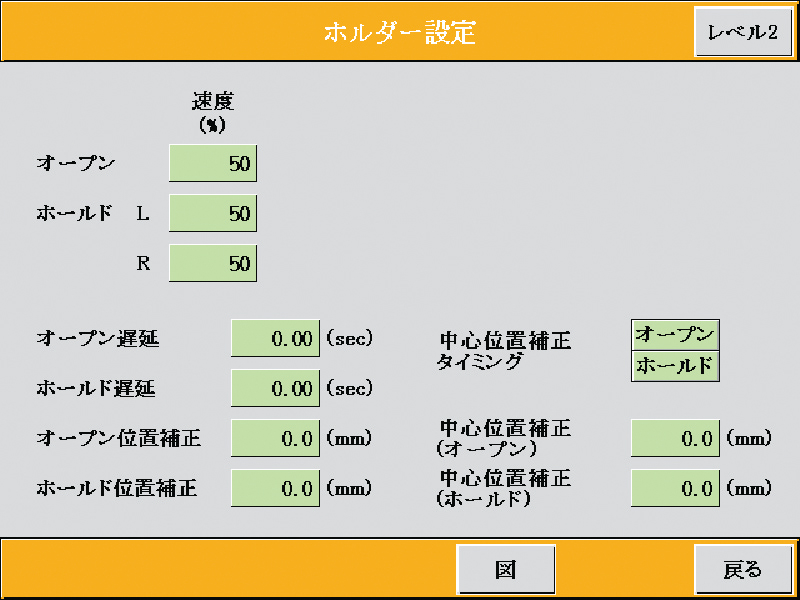

■Interactive Color Touch Screen
Clear 12.1’’ Graphic Display
Automated Product Set-up Wizard for Operator ease
Failsafe set-up sequence
Advanced Error Messaging and Self Diagnosis assists in quick recovery
Real time monitoring capabilities
Multiple screen levels – password protection
The “look and feel” of the proven and tested, Dataweigh operator interface
Production monitoring and reporting capabilities
■Capabilities
One machine design -Flexible for future production
| Product types | Case types | ||
| ・Large or smalll flexible bags | ・American style RSC’s | ||
| ・Standard-up pouches | ・HSC’s and trays | ||
| ・Flow wraped product | ・Display cases and more | ||
| ・Large or small cartons | |||
| ・Canisters, trays, bottles and more |

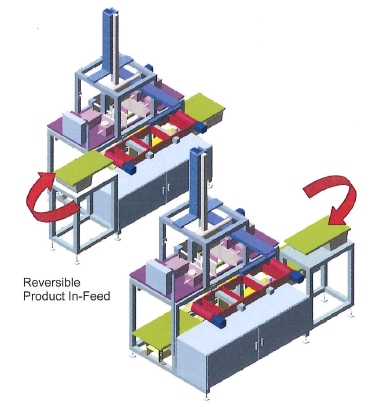

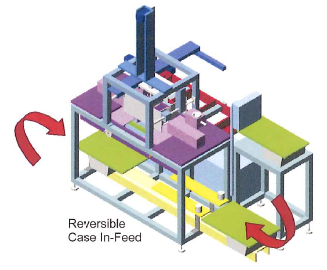

■Modular Design
Truly a flexible machine for realistically ever-changing applications and production demands
| Machine model | FCP-550VA |
| Style | Top Loader |
| Production Insertion | Vertical or horizontal flexible pillow Block bottom & Gusseted Bags Stand-up pouches Trays Cups Sleeved |
| Packing Capabilities | Trays, Cartons & Bottles |
| Shipping Case style | RSC, HSC, D/C,& Trays |
| Max Pack speed | To 150 per minute; dual lane in-feed* To 120 per minute; single lane in-feed* |
| Pack pattern | 1-22 units per row 1-4 rows per layer 1-10 layers per case |
| Case weight | <8kg** |
| Operator presets | Up to 50 programs |
| Operational environment | 0-40 degrees C |
| Drives | Servo |
| Electrical | 200V, 3 phase,50/60Hz |
| Machine weight | 1,200kg |
| CE compliance |
*Speeds may increase or decrease depend upon product caracteristics and case pack patterns.
**Increased weiht is available for discussion
